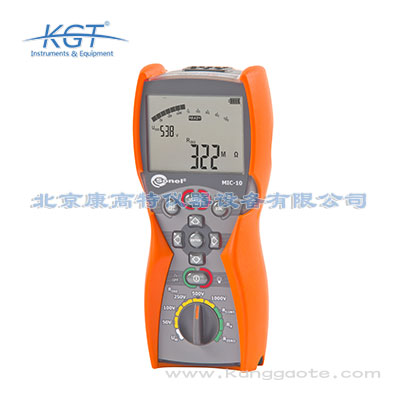

MIC-10絕緣電阻測試儀

品牌：波蘭SONEL(索耐)
分類：絕緣電阻測試儀
應用領域：石油化工，電網，電廠，軌道交通，
測試對象：電機，電纜，
國際標準：
國家標準：

聯系方式：010-68460051
Tel：13520131150

立即詢價

MIC-10絕緣電阻測試儀簡介：
Insulation resistance measurement:
?selected test voltage: 50, 100, 250, 500, 1000 V,
?continuous indication of insulation resistance or leakage current,
?automatic discharge of capacitance of tested object after the insulation resistance measurement,
?acoustic signalling of five-second periods to facilitate obtaining time characteristics,
?indication of actual test voltage during the measurement,
?protection against measuring live objects,
?three-lead measurement.
?Continuity measurement of protective and equipotential conductors according to EN 61557 - 4 with the >200 mA current

Low-voltage circuit continuity and resistance measurement:
?circuit resistance measurement (<1999 ) with the <15 mA current,
?quick sound signal if circuit resistance is below 30Ω.
?Capacitance measurement during the RISO measurement
?Measurement of alternating and direct voltages in the 0...600 V range.
?Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.
?Meter conform to EN 61557.

Electric safety:
?type of insulation: double, according to EN 61010 - 1 and IEC 61557
?measurement category: IV 600 V (III 1000 V) according to EN 61010 - 1
?protection class acc. to EN 60529: IP67

Other technical specifications:
?power suply: 4 alkaline batteries or or battery package Ni-MH
?weight: ~1 kg
?dimentions: 220 x 100 x 60 mm
